High-Performance M-Series: Nickel-Plated Brass Cable Glands

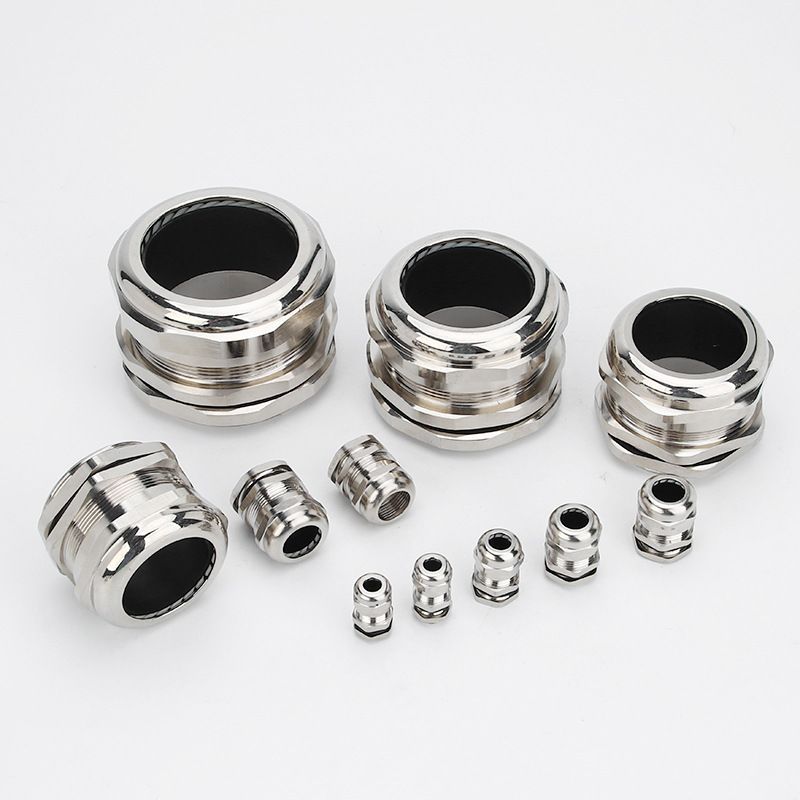

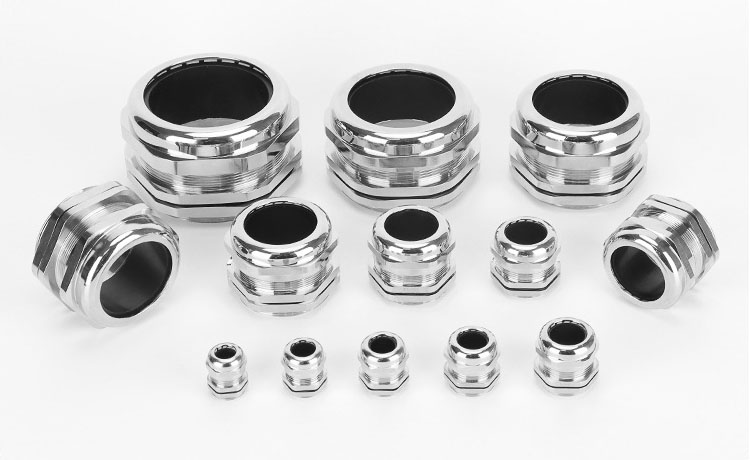

1. Product Overview

The Clifnor M-Series represents the gold standard in industrial cable entry solutions. Engineered with a precision Metric (M) thread, these glands provide a robust, liquid-tight seal for electrical enclosures, junction boxes, and heavy machinery. The combination of a nickel-plated brass body and an advanced Nylon PA clamping system ensures superior strain relief and long-term protection in high-vibration and corrosive environments.

2. Technical Specifications

Feature Industrial Specification
Thread Standard Metric (EN 60423)
Ingress Protection IP68 – 10 Bar (High-pressure water resistance)
Static Temperature -40°C to 100°C
Peak Heat Resistance Up to 120°C (Instantaneous)
Main Body Material Nickel-Plated Brass (H59-1 / H62 standard)
Sealing Elements NBR (High-performance Nitrile Rubber)
Clamping Insert Nylon PA66 (UL-94 V2)

3. Engineering & Design Advantages

  • Precision Clamping: The specialized claw and seal geometry allows for an extra-wide cable clamping range while maintaining a uniform, 360-degree grip that prevents cable jacket deformation.

  • Audible Locking System: The sealing nut is designed with a tactile “click” feedback mechanism, ensuring the installer that the gland is fully torqued and locked against vibration.

  • Chemical & Environmental Shield: Highly resistant to salt spray, weak acids, alcohols, industrial oils, and common solvents. The nickel plating provides an additional layer of protection against galvanic corrosion.

  • Pressure Resilience: Certified for IP68 at 10 Bar, making these glands suitable for underwater equipment, deep-well pumps, and offshore platforms.

4. Strategic Industry Applications

  • Industrial Machinery: Vibration-proof cable entry for CNC machines, motors, and robotics.

  • Renewable Energy: Secure connections in wind turbine nacelles and solar inverter housings.

  • Marine & Coastal: Port infrastructure and shipboard electrical systems exposed to high salinity.

  • Telecommunications: Weatherproof sealing for outdoor base stations and 5G equipment.

5. Technical Selection Table (Metric)

Item No. Thread Size (M) Cable Range (mm) Thread Length (mm) Spanner Size (mm)
GS-M12 M12 x 1.5 3 – 6.5 6.5 14
GS-M16 M16 x 1.5 4 – 8 7 18
GS-M20 M20 x 1.5 6 – 12 8 22
GS-M25 M25 x 1.5 13 – 18 8 30
GS-M32 M32 x 1.5 18 – 25 9 40
GS-M40 M40 x 1.5 22 – 32 10 50

6. Customization Services

We offer tailored solutions to meet specific engineering requirements:

  • Extended Threads: For thick-walled enclosures.

  • Special Seals: EPDM for higher UV/weather resistance or FKM (Viton) for high-temperature chemical environments.

  • Material Variants: Stainless Steel (SS304/SS316) available for food-grade or highly acidic environments.

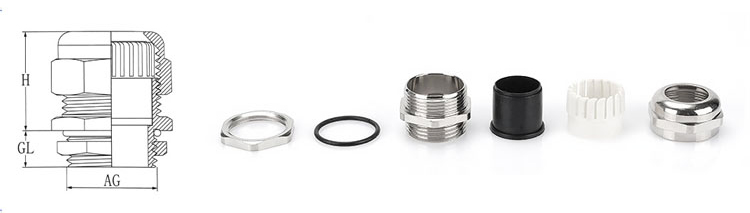

Code
产品编号		 Thread
螺牙规格		 Cable Range
(mm)
适用电缆		 Thread Diameter AG
(mm)
螺纹外径		 Thread Length GL
(mm)
螺纹长度		 Joint Length H
(mm)
接合长度		 Spanner Size
(mm)
扳手径
M8-MT M8*1 2-5.5 8 5 14 12
M10-MT M10*1 3-6.5 10 6.5 17 14
M12-MT M12*1.5 3-6.5 12 6.5 18 14
M14-MT M14*1.5 4-8 14 8 19 17
M16-MT M16*1.5 4-8 16 8 20 18
M18-MT M18*1.5 5-10 18 8 21 20
M20-MT M20*1.5 6-12 20 8 22 20
M22-MT M22*1.5 10-14 22 8 23 24
M24-MT M24*1.5 10-14 24 9 23 24/27
M25-MT M25*1.5 10-14 25 9 23 24/27
M25-MT M25*1.5 11-16 25 9 26 27
M25-MT M25*1.5 13-18 25 9 27 30/27
M27-MT M27*1.5 13-18 27 9 27 30
M27-MT M27*2 13-18 27 9 27 30
M30-MT M30*1.5 13-18 30 9 27 30/32
M30-MT M30*2 13-18 30 9 27 30/32
M32-MT M32*1.5 15-22 32 9 29 35
M32-MT M32*2 15-22 32 10 29 35
M33-MT M33*1.5 15-22 33 10 29 35
M33-MT M33*2 15-22 33 10 29 35
M36-MT M36*1.5 18-25 36 10 31 40
M36-MT M36*2 18-25 36 10 31 40
M37-MT M37*1.5 18-25 36 10 31 40
M37-MT M37*2 18-25 36 10 31 40
M40-MT M40*1.5 18-25 40 11 31 40/45
M40-MT M40*2 18-25 40 11 31 40/45
M40-MT M40*1.5 22-30 40 11 35 45
M40-MT M40*2 22-30 40 11 35 45
M47-MT M47*1.5 25-33 47 11 37 45
M47-MT M47*2 25-33 47 11 37 45
M50-MT M50*1.5 32-38 50 12 37 50/55
M50-MT M50*2 32-38 50 12 37 50/55
M60-MT M60*1.5 37-44 60 14 38 64
M60-MT M60*2 37-44 60 14 38 64
M63-MT M63*1.5 37-44 63 14 38 64/68
M63-MT M63*2 37-44 63 14 38 64/68
M72-MT M72*2 42-52 72 15 42 78
M75-MT M75*2 42-52 75 15 42 78
M80-MT M80*2 50-62 80 15 45 86/88
M88-MT M88*2 60-70 80 15 45 98
M100-MT M100*2 70-80 80 15 45 110
