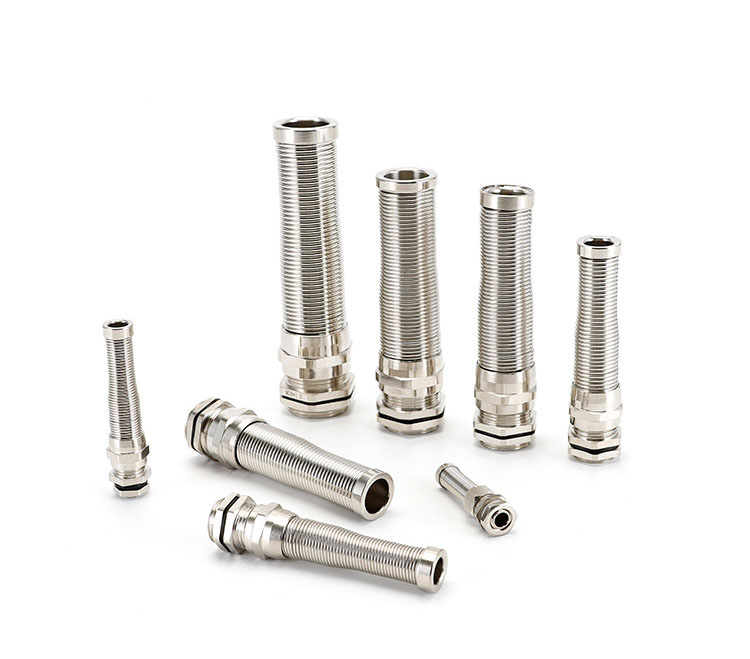

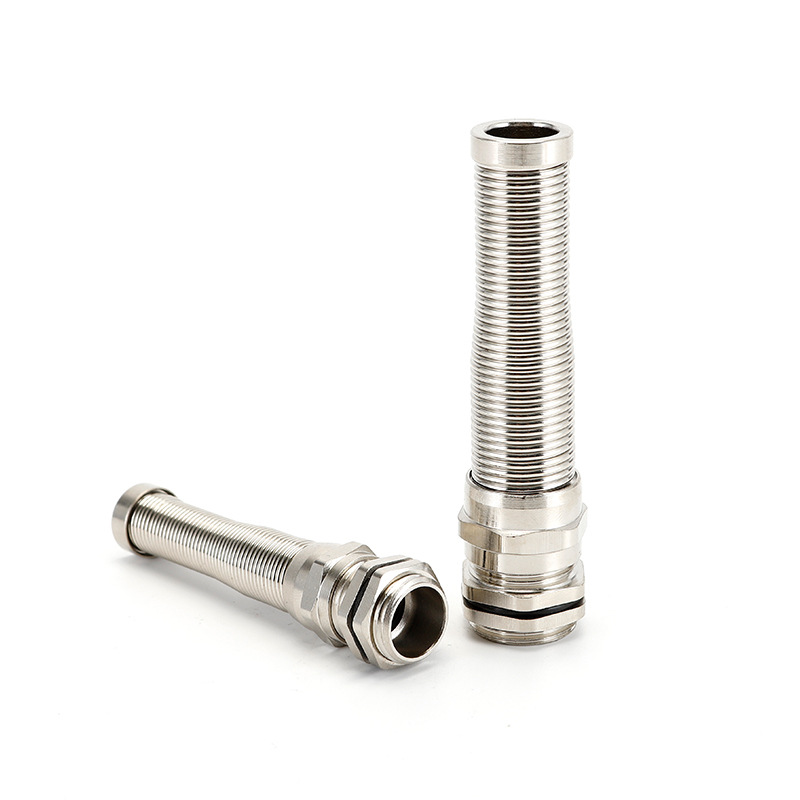

Industrial Series: Anti-Bending Brass Cable Glands (Spiral Type)

1. Product Overview

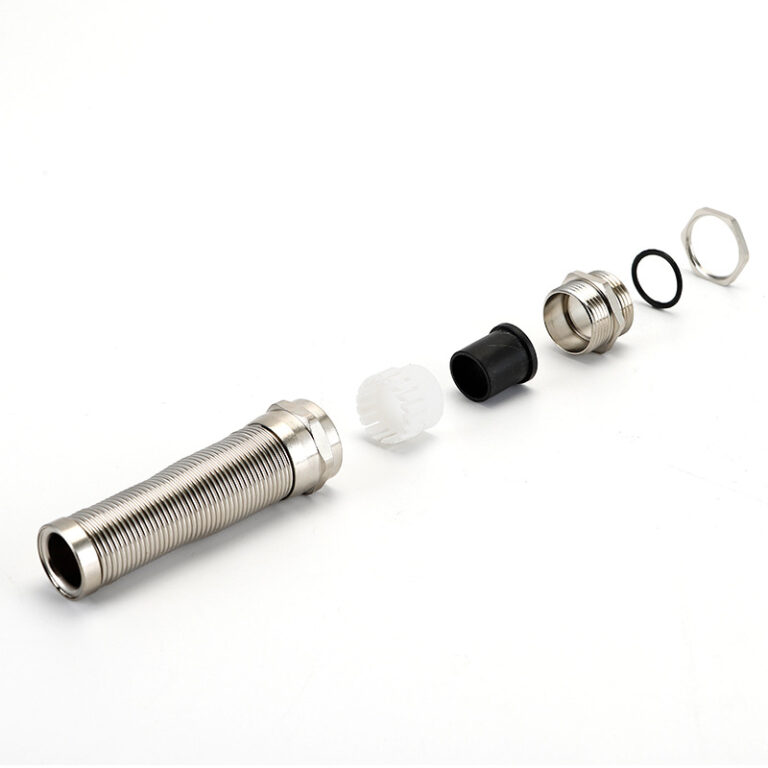

The Clifnor Spiral Series is a heavy-duty cable entry solution engineered for dynamic applications where cables are subject to frequent movement, bending, or oscillation. Constructed from Nickel-Plated Brass and featuring a high-tensile stainless steel or brass spiral spring, these glands prevent cable fatigue and “kinking” at the entry point. With an IP68 – 10 Bar rating and an integrated Insulating Liner, they provide industry-leading protection for sensitive conductors.

2. Technical Specifications

3. Engineering & Performance Advantages

• Anti-Kink Protection: The integrated spiral spring significantly increases the bending radius of the cable, effectively preventing wire core breakage and extending the operational lifespan of the cable.

• Insulated Safety: Unlike standard metal glands, this series is furnished with an insulating liner to provide secondary electrical isolation and protect the cable jacket from sharp metal edges.

• High-Pressure Integrity: Certified for IP68 at 10 Bar, ensuring a liquid-tight seal even under significant hydrostatic pressure or high-pressure washdowns.

• Audible Locking System: The sealing nut incorporates a “click” feedback mechanism, providing a tactile confirmation of a secure, vibration-proof lock.

• Metric & International Threads: Available in Metric and PG as standard, with NPT (North American) and G (Gas/Pipe) threads available for specialized global projects.

4. Strategic Industry Applications

• Robotics & Automation: Protecting power and signal cables on moving robotic arms and CNC gantries.

• Handheld Industrial Tools: Preventing cord fatigue at the handle entry of heavy-duty portable equipment.

• Renewable Energy: Dynamic cable management for solar trackers and wind turbine sensors.

• Marine & Offshore: Deck-mounted equipment where cables are exposed to both salt spray and mechanical strain.

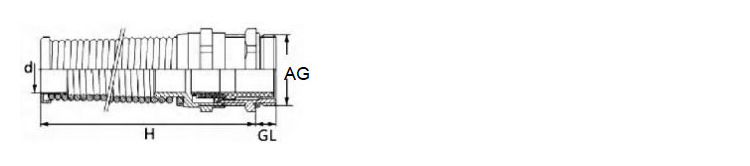

5. Technical Selection Table (Standard Sizes)

6. Customization Options

• NPT/G Threads: Custom machining for specialized pipe-thread standards.

• Extended Threads: Available for thick-walled junction boxes.

• Alternative Materials: Stainless steel (SS316) available for highly acidic or food-grade environments.
