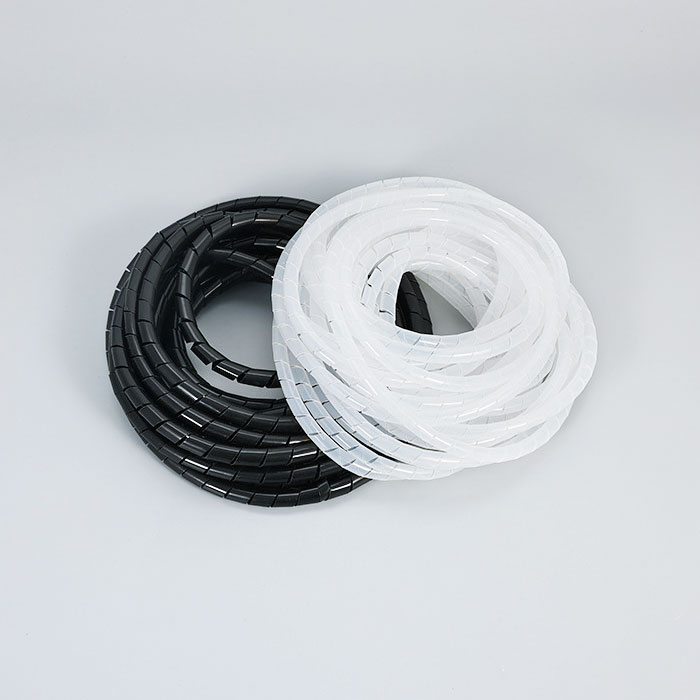

Flexible Spiral Wrapping Bands | PE Wire Protection | Clifnor
Meta Description: Durable PE spiral wrapping bands for cable bundling and insulation. Clockwise spiral design for easy installation and a professional finish. Available in various diameters.
Product Details: * Material: High-quality Polyethylene (PE).
-
Function: Serves as a protective “skin” for electric wires, providing insulation and a clean, organized look.
-
Key Advantages:
-
Flexibility: Allows wires to branch out at any point along the spiral.
-
Structural Memory: Maintains its shape and tension even after repeated use.
-
Abrasion Resistance: Protects internal wiring from friction and sharp edges.
-
How to Use: 1. Gather the cables to be bundled and secure one end with a cable tie or safety belt.
2. Start wrapping the spiral band around the bundle in a clockwise direction.
3. Continue circling until the entire length is covered, ensuring a tight and secure fit.

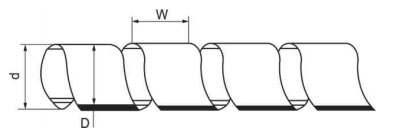

| Ürün Kodu | İç Çap (d) mm | Dış Çap (D) mm | Genişlik/Adım (W) mm | Sarma Aralığı (mm) |
| GS-6SW | 4.0 | 6.0 | 7.0 | 4 – 50 |
| GS-8SW | 6.0 | 8.0 | 10.8 | 6 – 60 |
| GS-10SW | 7.5 | 10.0 | 11.4 | 7.5 – 60 |
| GS-12SW | 9.0 | 12.0 | 13.9 | 9 – 65 |
| GS-16SW | 13.0 | 16.0 | 15.0 | 12 – 70 |
| GS-20SW | 16.0 | 20.0 | 18.2 | 15 – 100 |
| GS-25SW | 21.0 | 25.0 | 19.6 | 20 – 130 |
