Description

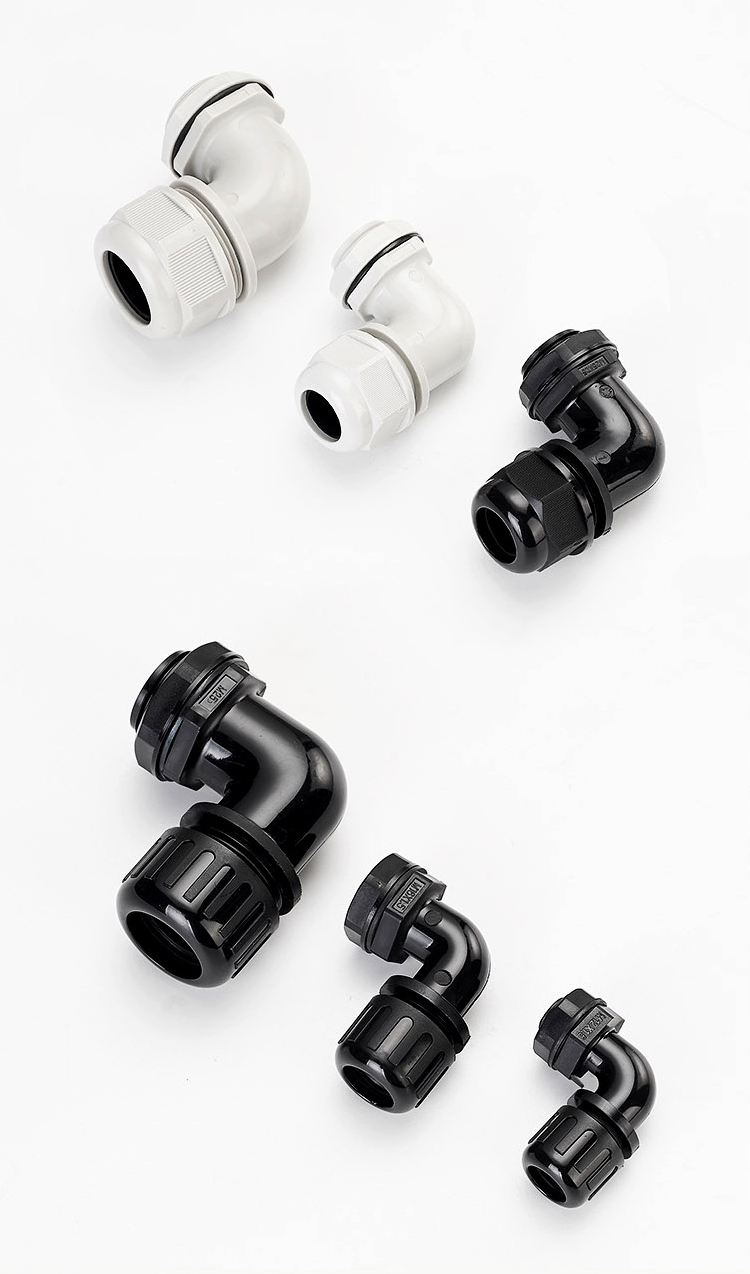

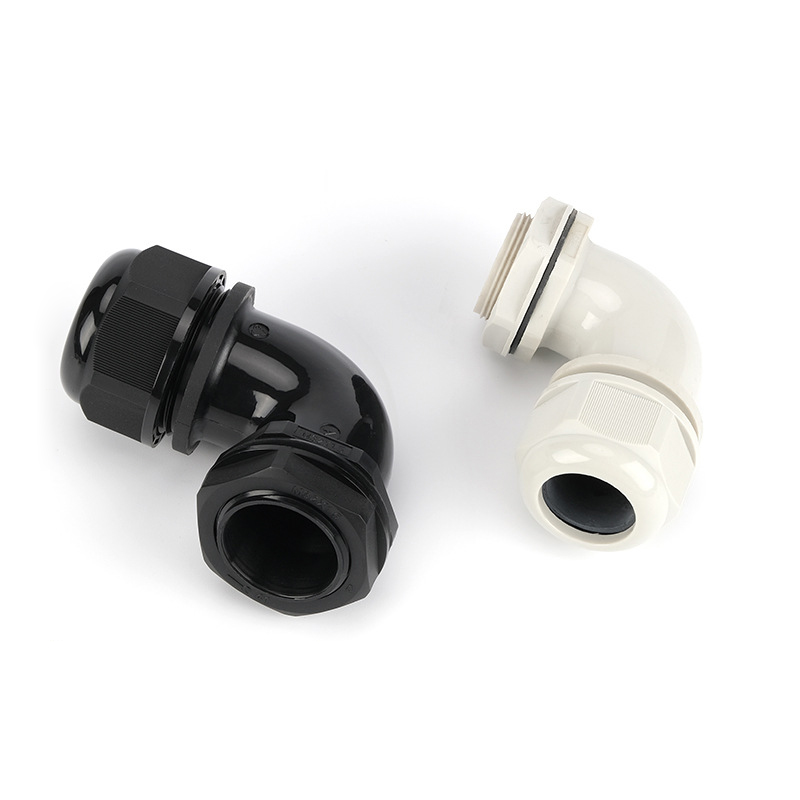

Industrial Series: 90° Right-Angle Nylon Cable Glands
1. Product Overview
The Clifnor 90-Degree Series is a specialized cable management solution designed for tight spaces and low-profile electrical enclosures. By orienting the cable entry parallel to the mounting surface, these elbow glands prevent excessive cable protrusion and stress on the outer jacket. Constructed from high-impact Nylon PA66, they provide a permanent IP68 seal while maintaining superior strain relief.
2. Technical Specifications
| Feature | Industrial Specification |
| Angle Orientation | 90° Right-Angle Elbow |
| Thread Type | Metric (M) / PG (Standard) |
| Ingress Protection | IP68 (Waterproof & Dust-proof) |
| Body Material | High-Grade Polyamide 66 (Nylon PA66) |
| Seals & O-Rings | NBR (Standard) or EPDM (Outdoor use) |
| Static Temp. Range | -40°C to 100°C (Instantaneous 120°C) |
| Dynamic Temp. Range | -20°C to 80°C (Instantaneous 100°C) |
3. Engineering & Performance Advantages
-
Space-Saving Architecture: Ideal for machines located close to walls or within narrow control cabinets where a straight gland would exceed the available depth.
-
Integrated Strain Relief: The precision-engineered clamping claw and rubber seal offer ultra-strong stretching resistance, ensuring the cable remains secure even under mechanical tension.
-
Environmental Resilience: Engineered to withstand exposure to salt spray, weak acids, alkalis, alcohols, and common industrial greases.
-
UV Stability: Available in Jet Black (RAL 9005) for high-exposure outdoor applications to prevent long-term material embrittlement.
4. Strategic Industry Applications
-
Robotics & CNC: Protecting sensor and power cables on moving axes with limited clearance.
-
Telecommunications: Low-profile routing for outdoor antenna boxes and signal repeaters.
-
Lighting Systems: Wall-mounted architectural LED fixtures requiring side-entry cable paths.
-
Heavy Machinery: Connection points on motors and gearboxes where vertical clearance is restricted.
5. Technical Selection Table (90° Elbow)
| Item No. | Thread Size (M/PG) | Cable Range (mm) | Thread Length (mm) |
| GS-M12-A | M12 x 1.5 | 3 – 6.5 | 8 |
| GS-M16-A | M16 x 1.5 | 4 – 8 | 8 |
| GS-M20-A | M20 x 1.5 | 6 – 12 | 10 |
| GS-M25-A | M25 x 1.5 | 13 – 18 | 10 |
| GS-PG7-A | PG 7 | 3 – 6.5 | 8 |
| GS-PG11-A | PG 11 | 5 – 10 | 8 |
| GS-PG16-A | PG 16 | 10 – 14 | 10 |
6. Ordering & Customization
-
Standard Colors: Black (RAL 9005), Light Grey (RAL 7035), and White.
-
Sealing Options: EPDM seals are recommended for projects requiring enhanced ozone and weather resistance.
-
Special Requirements: For high-temperature zones (Class V0) or custom thread lengths, please contact our technical department.

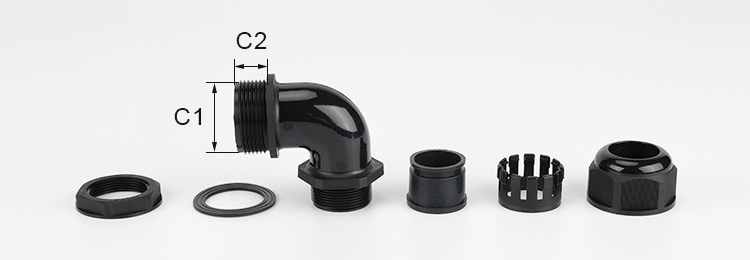

| Code 产品编号 |
Thread 螺牙规格 |
Cable Range (mm) 适用电缆 |
Thread Diameter (mm) 螺纹外径 |
Thread Length (mm) 螺纹长度 |
Spanner Size (mm) 扳手径 |
|---|---|---|---|---|---|
| M16-NL90 | M16*1.5 | 4-8 | 16 | 8 | 19 |
| M16-NL90 | M16*1.5 | 2-6 | 16 | 8 | 19 |
| M18-NL90 | M18*1.5 | 5-10 | 18 | 8 | 22 |
| M18-NL90 | M18*1.5 | 3-7 | 18 | 8 | 22 |
| M20-NL90 | M20*1.5 | 6-12 | 20 | 9 | 24 |
| M20-NL90 | M20*1.5 | 5-9 | 20 | 9 | 24 |
| M22-NL90 | M22*1.5 | 10-14 | 22 | 10 | 27 |
| M22-NL90 | M22*1.5 | 7-12 | 22 | 10 | 27 |
| M25-NL90 | M25*1.5 | 13-18 | 25 | 11 | 33 |
| M25-NL90 | M25*1.5 | 9-16 | 25 | 11 | 33 |
| M32-NL90 | M32*1.5 | 18-25 | 32 | 11 | 41 |
| M32-NL90 | M32*1.5 | 13-20 | 32 | 11 | 41 |
| Code 产品编号 |
Thread 螺牙规格 |
Cable Range (mm) 适用电缆 |
Thread Diameter (mm) 螺纹外径 |
Thread Length (mm) 螺纹长度 |
Spanner Size (mm) 扳手径 |
|---|---|---|---|---|---|
| PG9-NL90 | PG9 | 4-8 | 15.2 | 8 | 19 |
| PG9-NL90 | PG9 | 2-6 | 15.2 | 8 | 19 |
| PG11-NL90 | PG11 | 5-10 | 18.6 | 8 | 22 |
| PG11-NL90 | PG11 | 3-7 | 18.6 | 8 | 22 |
| PG13.5-NL90 | PG13.5 | 6-12 | 20.4 | 9 | 24 |
| PG13.5-NL90 | PG13.5 | 5-9 | 20.4 | 9 | 24 |
| PG16-NL90 | PG16 | 10-14 | 22.5 | 10 | 27 |
| PG16-NL90 | PG16 | 7-12 | 22.5 | 10 | 27 |
| PG21-NL90 | PG21 | 13-18 | 28.3 | 11 | 33 |
| PG21-NL90 | PG21 | 9-16 | 28.3 | 11 | 33 |
| PG29-NL90 | PG29 | 18-25 | 37 | 11 | 41 |
| PG29-NL90 | PG29 | 13-20 | 37 | 11 | 41 |
