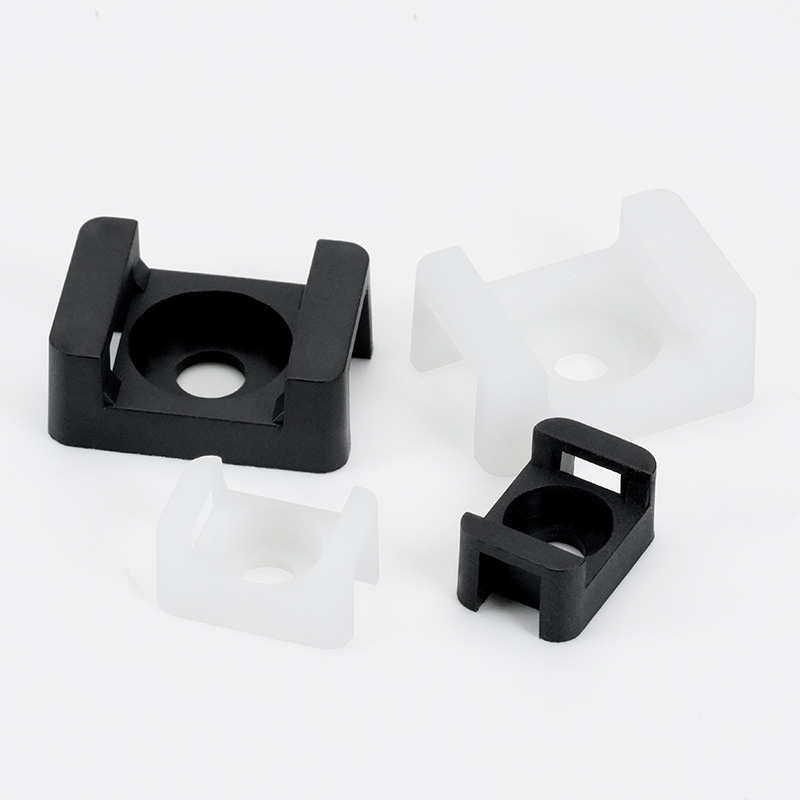

Nylon Saddle Type Cable Tie Mounts | Screw-Fixed | Clifnor Fixings
Heavy-duty saddle-type cable tie mounts made of UL-approved Nylon 66. Designed for maximum stability in wire bundling. Secure screw-mount design for industrial applications.
Product Details:
-
Material: High-quality Nylon 66 (UL 94V-2 certified).
-
Design: The unique “saddle” shape provides enhanced lateral support and maximum stability for large or heavy wire bundles.
-
Application: Ideal for vibration-heavy environments, industrial machinery, and permanent electrical installations where adhesive mounts are insufficient.
-
How to Use: 1. Position the mount on the desired surface. 2. Fix securely using a screw through the central mounting hole. 3. Thread a nylon cable tie through the saddle and tighten around the wire bundle.
| Item No / Ürün Kodu | Height (mm) | Length (mm) | Width (mm) | Screw Hole (mm) | Tie Width (mm) |
| GS-HC1 | 7.0 | 15.0 | 10.0 | 3.5 | 5.0 |
| GS-HC2 | 9.0 | 23.0 | 16.0 | 5.0 | 9.0 |
| GS-HC3 | 12.0 | 30.0 | 15.0 | 5.0 | 9.0 |
