Screw-On Wire Connectors | Heat-Resistant PVC | Clifnor Wiring
Meta Description: Durable screw-on wire connect caps made of heat-resistant PVC. Features a threaded internal spring for secure wire joining and superior insulation.
Product Details:
-

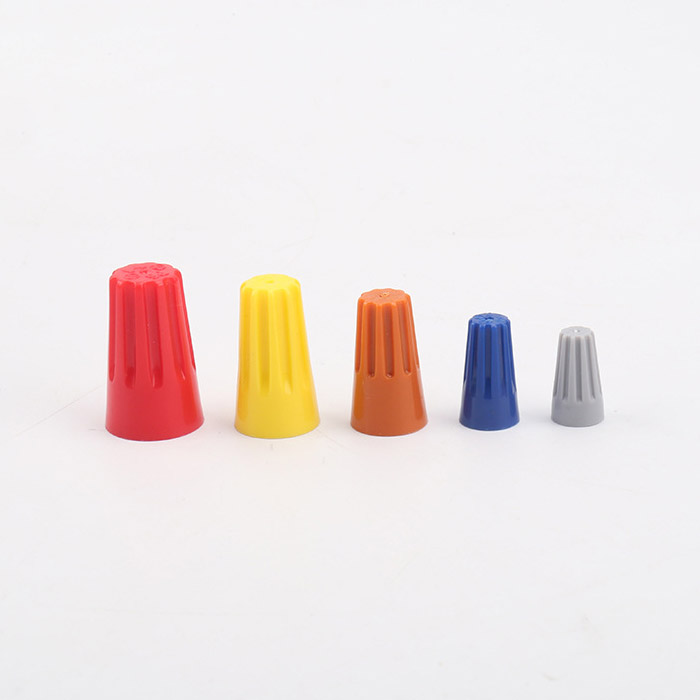

Material: High-quality PVC shell with a threaded internal spring.
-
Properties: Excellent heat resistance, electrical insulation, and vibration-proof stability.
-
Application: Ideal for secure wire joining and splicing in residential or industrial electrical systems.
How to Use:
-
Strip the insulation from the ends of the two wires to be joined.
-
Insert the wire ends into the connector cap.
-
Twist the cap clockwise until it is tight and the connection is secure.

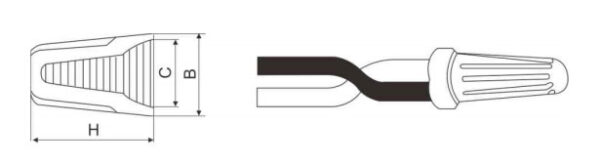

| Item No / Ürün Kodu | Height (H) mm | Width (B) mm | Inner I.D (C) mm | Wire Range / Kablo Aralığı |
| GS-P1 | 15.0 | 9.0 | 7.0 | 0.5 – 1.0 mm² (AWG 22-18) |
| GS-P2 | 18.0 | 10.0 | 8.0 | 1.0 – 1.5 mm² (AWG 18-16) |
| GS-P3 | 23.0 | 11.0 | 10.0 | 1.5 – 2.5 mm² (AWG 16-14) |
| GS-P4 | 24.0 | 14.0 | 11.0 | 2.5 – 4.0 mm² (AWG 14-12) |
| GS-P6 | 28.0 | 16.0 | 13.0 | 4.0 – 6.0 mm² (AWG 12-10) |
| GS-P8 | 32.0 | 18.0 | 14.0 | 10 – 16 mm² (AWG 6) |
