Industrial Series: Anti-Bending Nylon Cable Glands (Spiral Type)

1. Product Overview

The Clifnor Spiral Series is a high-performance cable management solution specifically engineered for dynamic applications. Featuring an integrated spiral spring protector made from high-impact Nylon PA66, these glands prevent sharp bends and kinking at the cable entry point, significantly extending the life of power and data cables. With an IP68 – 10 Bar rating, they provide a permanent liquid-tight seal in even the most rigorous industrial environments.

2. Technical Specifications

3. Engineering & Performance Advantages

• Integrated Strain Relief: The precision-molded spiral tail limits the bending radius of the cable. This prevents internal wire fatigue and outer jacket cracking, which is critical for equipment subject to frequent movement or manual handling.

• Hermetic Sealing: Utilizes a high-compression NBR or EPDM seal to maintain IP68 integrity, protecting internal electronics from high-pressure water jets and fine dust.

• Environmental Shielding: The Nylon PA66 chassis is highly resistant to saltwater, weak acids, alcohols, and industrial oils. EPDM seals are recommended for outdoor use due to their superior ozone and weathering resistance.

• Universal Thread Compatibility: Available in Metric and PG for European machinery, NPT for North American standards, and G for pipe-threaded enclosures.

4. Strategic Industry Applications

• Industrial Robotics: Protecting sensor and power lines on moving robotic arms and automated pick-and-place systems.

• Handheld Equipment: Stress relief for the power cords of portable industrial tools, pendants, and remote controllers.

• Renewable Energy: Dynamic cable management for solar trackers and wind turbine monitoring systems.

• Telecommunications: Weatherproof, anti-kink routing for outdoor networking masts and signal towers.

5. Technical Selection Table (Standard Sizes)

6. Customization & Compliance

• V0 Flame Retardancy: Available for rail and underground applications where self-extinguishing properties are mandatory.

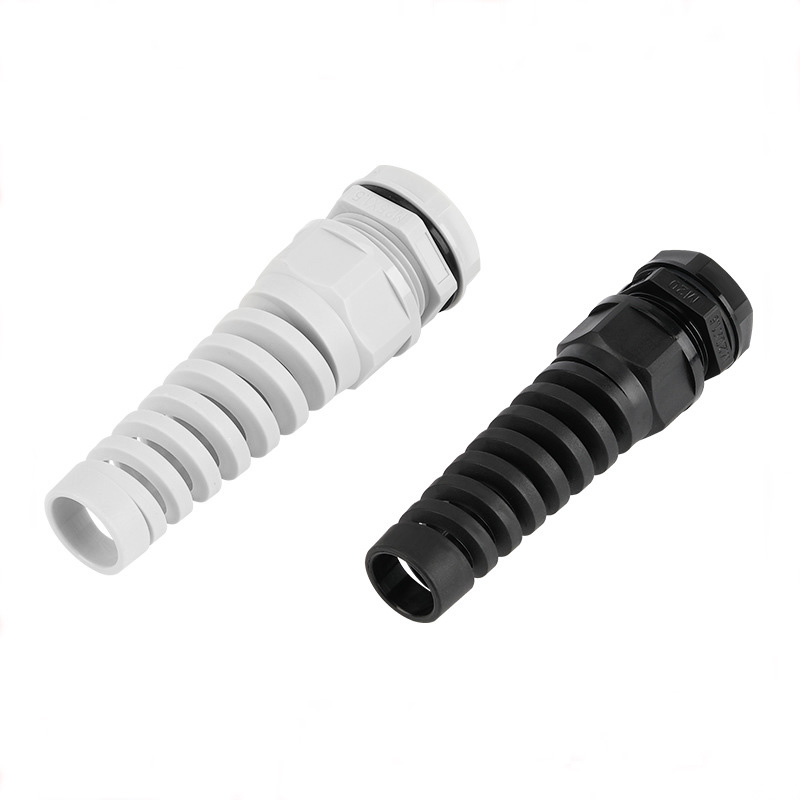

• Custom Colors: Available in Black (Standard UV-stabilized), Light Grey (RAL 7035), or custom colors for safety circuit identification.
