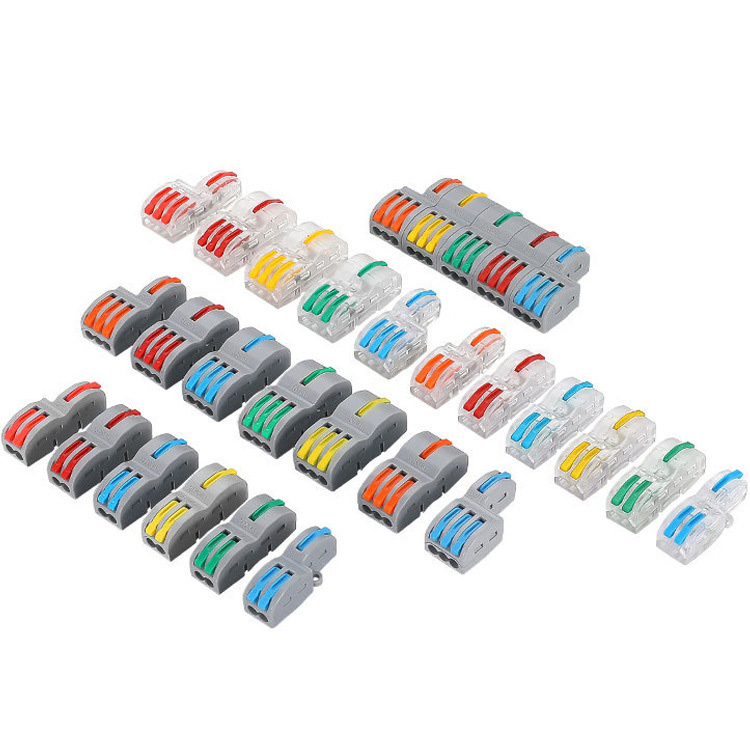

FD Series High-Performance Quick Connectors | 32A/440V | Clifnor
Industrial-grade FD series terminal blocks. Featuring flame-retardant Nylon shells and nickel-plated copper conductors. Rated for 32A/440V applications with tool-free lever action.
Technical Specifications:
-
Shell Material: High-grade Flame Retardant Nylon (UL94V-0/V-2 compliant).
-
Conductive Material: Premium Nickel-plated Copper (provides superior conductivity and corrosion resistance).
-
Electrical Performance:
-
Rated Voltage: 440V
-
Rated Current: 32A
-
-
Advantage: The FD series offers enhanced structural integrity for frequent lever operations and high-vibration environments.

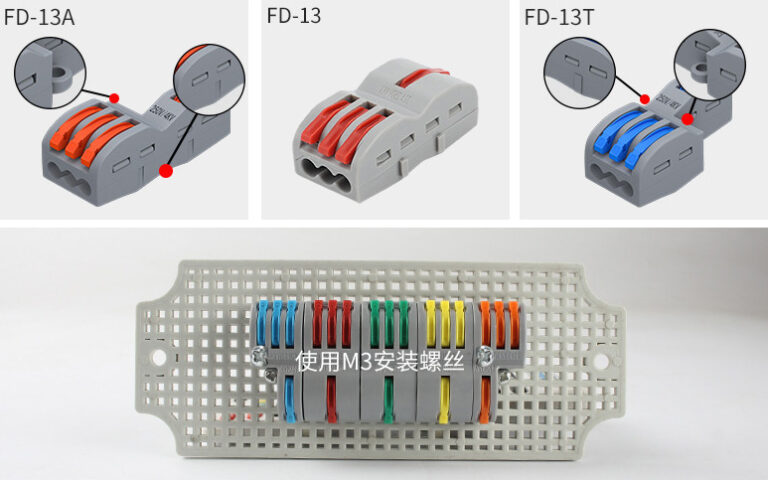

| Item No. / Ürün Kodu | Shell Type / Gövde | Wire Range (mm²) / Kablo Kesiti | Specifications (In-Out) |
| FD-12 | Opaque (Opak) | 0.08 – 4.0 | 1 In – 2 Out |
| FD-12A | Opaque (Opak) | 0.08 – 4.0 | 1 In – 2 Out |
| FD-12B | Opaque (Opak) | 0.08 – 4.0 | 1 In – 2 Out |
| FD-13 | Opaque (Opak) | 0.08 – 4.0 | 1 In – 3 Out |
| FD-13A | Opaque (Opak) | 0.08 – 4.0 | 1 In – 3 Out |
| FD-13B | Opaque (Opak) | 0.08 – 4.0 | 1 In – 3 Out |
| — | — | — | — |
| FD-12-T | Transparent (Şeffaf) | 0.08 – 4.0 | 1 In – 2 Out |
| FD-12A-T | Transparent (Şeffaf) | 0.08 – 4.0 | 1 In – 2 Out |
| FD-12B-T | Transparent (Şeffaf) | 0.08 – 4.0 | 1 In – 2 Out |
| FD-13-T | Transparent (Şeffaf) | 0.08 – 4.0 | 1 In – 3 Out |
| FD-13A-T | Transparent (Şeffaf) | 0.08 – 4.0 | 1 In – 3 Out |
| FD-13B-T | Transparent (Şeffaf) | 0.08 – 4.0 | 1 In – 3 Out |
