Industrial Series: IP68 Nylon PA66 Waterproof Cable Clips
1. Product Overview
The Clifnor Waterproof Cable Clip series is designed for high-integrity cable fastening in environments where moisture, dust, and mechanical vibration are constant factors. Utilizing premium Nylon PA66, these clips provide a robust mechanical grip alongside a certified IP68 waterproof seal when integrated with the appropriate sealing rings. Their design ensures long-term UV stability and chemical resistance for both indoor and outdoor installations.
2. Technical Specifications
| Specification | Parameter Value |
| Material | Nylon PA66 (Halogen-free, High-impact) |
| Protection Rating | IP68 (Dust-tight and Submersion resistant) |
| Static Temperature | -40°C to 100°C (Short-term peak: 120°C) |
| Dynamic Temperature | -20°C to 80°C (Short-term peak: 100°C) |
| Flammability Grade | UL-94 V2 (V0 available upon request) |

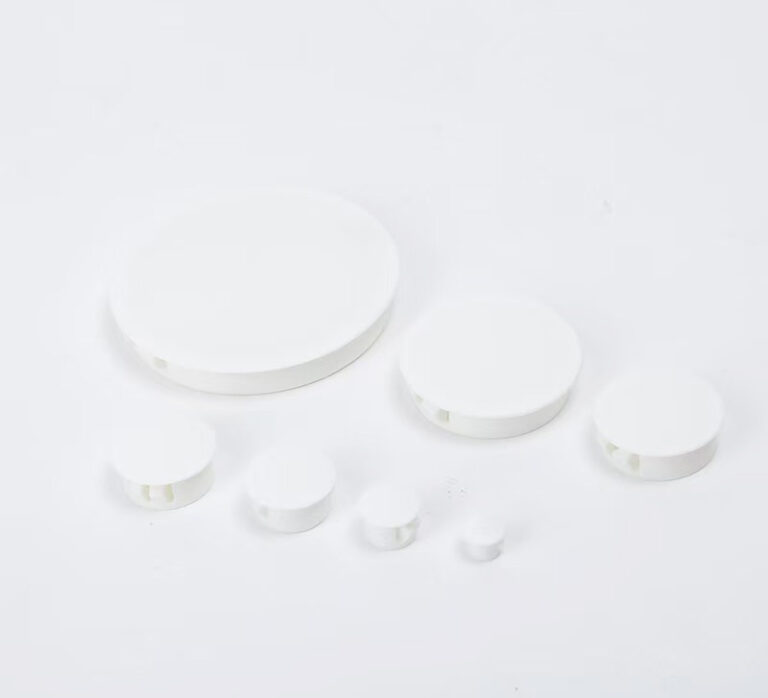

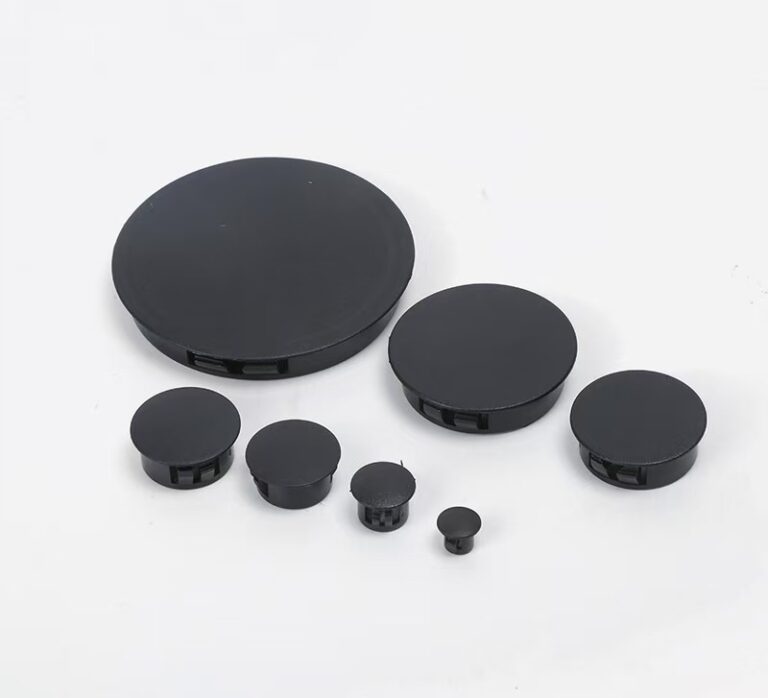

| Standard Colors | Black (UV resistant), White |
3. Engineering & Performance Advantages
-
Structural Integrity: The Nylon PA66 construction offers superior tensile strength and rigidity, resisting environmental stress cracking even in fluctuating arctic or tropical climates.
-
Hermetic Sealing: By rotating the component and engaging the precision-engineered sealing ring, the clip achieves an IP68 rating, protecting internal electrical connections from water ingress under pressure.
-
Chemical Resilience: High resistance to common industrial agents including salt spray, weak acids, alkalis, alcohols, and various oils/greases.
-
UV Protection: Black-pigmented versions are specifically stabilized for outdoor use to prevent material embrittlement caused by prolonged sunlight exposure.
4. Strategic Industry Applications
-
Solar & Wind Energy: Secure, weatherproof fastening of power and signal cables on external racking and nacelles.
-
Maritime & Coastal: Corrosion-proof cable management on ships, docks, and coastal lighting projects.
-
Urban Infrastructure: Waterproof routing for smart city sensors, traffic cameras, and public Wi-Fi access points.
-
Industrial Automation: Cable organization in wash-down areas for food processing and chemical manufacturing.
5. Installation & Customization
-
Seal Integrity: To maintain the IP68 rating, ensure the cable diameter is compatible with the seal’s internal orifice and that the locking part is fully rotated to its stop point.
-
Customization: Beyond standard black and white, we can provide custom colors for safety identification or brand matching upon request.

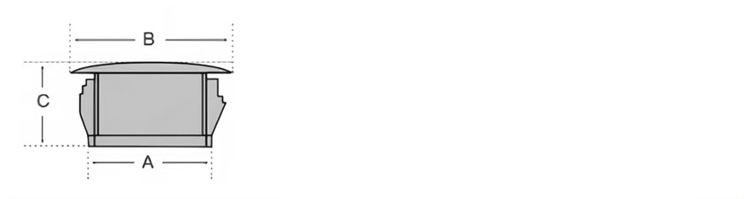

| Code 产品编号 |
A Hole Diameter (mm) A孔直径 |
Hole Range (mm) 孔径使用范围 |
B Diameter (mm) B直径 |
C Height (mm) C高度 |
|---|---|---|---|---|
| M5 | 4.8 | 4.8 – 5.3 | 6.5 | 5.8 |
| M6 | 5.8 | 5.8 – 6.4 | 7.5 | 5.8 |
| M7 | 6.8 | 6.8 – 7.9 | 10 | 8 |
| M8 | 7.8 | 7.8 – 8.9 | 11 | 8 |
| M9 | 8.8 | 8.8 – 10.5 | 12 | 10.5 |
| M10 | 9.8 | 9.8 – 11.1 | 13.2 | 10.5 |
| M11 | 10.8 | 10.8 – 12 | 14 | 10.5 |
| M12 | 11.8 | 11.8 – 13 | 15 | 10.5 |
| M13 | 12.7 | 12.7 – 13.5 | 17 | 10.5 |
| M14 | 13.7 | 13.7 – 15 | 17.9 | 10.5 |
| M15 | 14.8 | 14.8 – 16 | 17.9 | 10.5 |
| M16 | 15.7 | 15.7 – 17 | 19.8 | 10.8 |
| M18 | 17.7 | 17.7 – 19 | 21.7 | 10.8 |
| M19 | 18.7 | 18.7 – 19.5 | 23.1 | 10.8 |
| M20 | 19.7 | 19.7 – 21 | 23.6 | 10.8 |
| M22 | 21.7 | 21.7 – 23 | 25.4 | 11.5 |
| M25 | 24.6 | 24.6 – 26 | 28.2 | 11.5 |
| M26 | 25.7 | 25.7 – 27 | 28.9 | 11.5 |
| M28 | 27.6 | 27.6 – 29 | 31.4 | 11.5 |
| M30 | 29.7 | 29.7 – 31 | 34 | 11.5 |
| M32 | 31.6 | 31.6 – 33 | 35.7 | 11.5 |
| M35 | 34.7 | 34.7 – 36 | 37.2 | 11.5 |
| M38 | 37.6 | 37.6 – 39 | 41.5 | 11.5 |
| M40 | 39.7 | 39.7 – 41 | 45.3 | 11.5 |
| M45 | 44.6 | 44.6 – 46 | 49.7 | 11.5 |
| M50 | 49.6 | 49.6 – 51 | 54.5 | 11.5 |
| M55 | 54.6 | 54.5 – 56 | 59.4 | 11.5 |
| M60 | 59.3 | 59.3 – 61 | 64.9 | 11.5 |
