Description

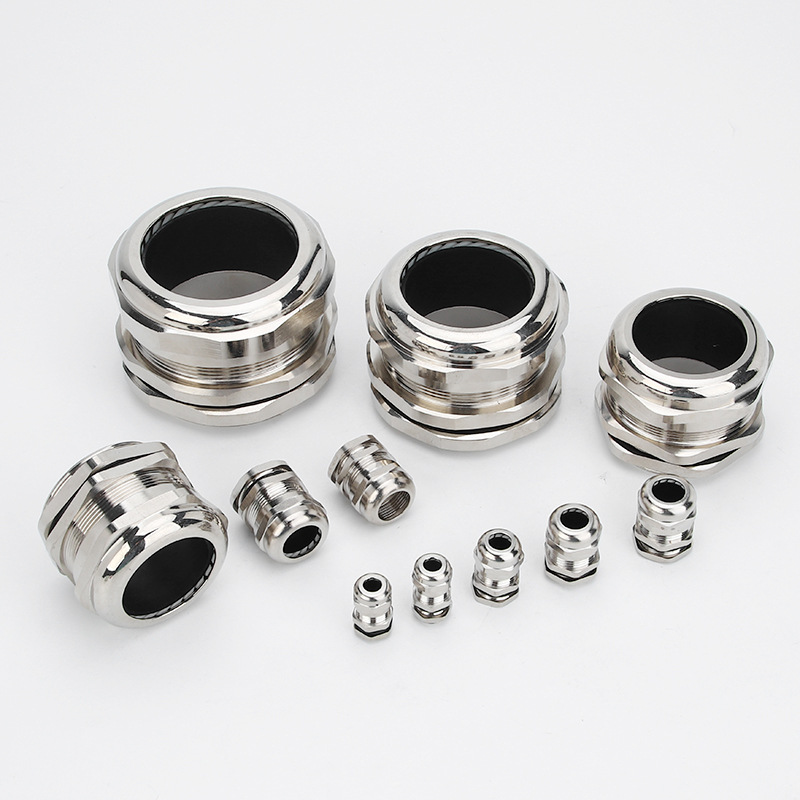

1. Product Overview
The Clifnor PG-Series is a high-performance cable entry solution designed for industrial machinery and electrical enclosures following the German DIN 40430 standard. Engineered with a rugged nickel-plated brass body and an advanced Nylon PA clamping system, these glands provide a permanent, liquid-tight seal. They are specifically built to offer superior strain relief and vibration resistance in heavy-duty industrial environments.
2. Technical Specifications
| Feature | Industrial Specification |
| Thread Standard | PG (DIN 40430) |
| Ingress Protection | IP68 – 10 Bar (High-pressure water resistance) |
| Operational Temp. | -40°C to 100°C (Static) / Up to 120°C (Instantaneous) |
| Body Material | Nickel-Plated Brass (H59-1 / H62 standard) |
| Sealing Elements | NBR (High-performance Nitrile Rubber) |
| Clamping Insert | Nylon PA66 (UL-94 V2) |
3. Engineering & Performance Advantages
-
Optimized Sealing Geometry: The specialized claw and seal design allows for a wider cable clamping range while maintaining a uniform, 360-degree grip that prevents cable jacket deformation and ensures IP68 integrity.
-
Audible “Click” Locking: The sealing nut is engineered with a tactile feedback mechanism. This ensures the installer that the gland is fully torqued, preventing accidental loosening due to thermal expansion or industrial vibrations.
-
Superior Chemical Resistance: The nickel-plated finish provides a resilient shield against salt spray, weak acids, alcohols, industrial oils, and common solvents.
-
Mechanical Durability: The high-tensile brass body is designed to withstand mechanical impacts and harsh atmospheric conditions, outperforming standard plastic alternatives in longevity.
4. Strategic Industry Applications
-
Industrial Control Panels: Reliable cable entry for PLC cabinets and junction boxes.
-
European Machinery (OEM): Standard connectivity for motors, sensors, and actuators in DIN-compliant equipment.
-
Marine & Coastal Systems: Weatherproof sealing for port infrastructure and shipboard electronics.
-
Telecommunications: Secure housing for outdoor base stations and signal distribution units.

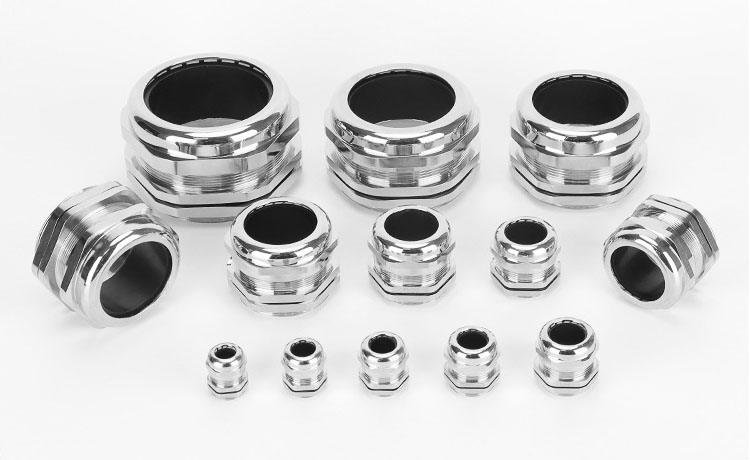

5. Technical Selection Table (PG)
| Item No. | Thread Size (PG) | Cable Range (mm) | Thread Length (mm) | Spanner Size (mm) |
| GS-PG7 | PG 7 | 3 – 6.5 | 6 | 14 |
| GS-PG9 | PG 9 | 4 – 8 | 6 | 18 |
| GS-PG11 | PG 11 | 5 – 10 | 6 | 20 |
| GS-PG13.5 | PG 13.5 | 6 – 12 | 6.5 | 22 |
| GS-PG16 | PG 16 | 10 – 14 | 6.5 | 24 |
| GS-PG21 | PG 21 | 13 – 18 | 7 | 30 |
| GS-PG29 | PG 29 | 18 – 25 | 8 | 40 |
6. Customization & Engineering Services
We provide tailored modifications to meet your project’s unique requirements:
-
Alternative Sealing: EPDM for enhanced UV resistance or FKM (Viton) for high-temperature chemical applications.
-
Custom Thread Lengths: Available for mounting on thick-walled casting enclosures.
-
Material Variations: Stainless Steel (SS304/SS316) available for food-grade or highly corrosive environments.

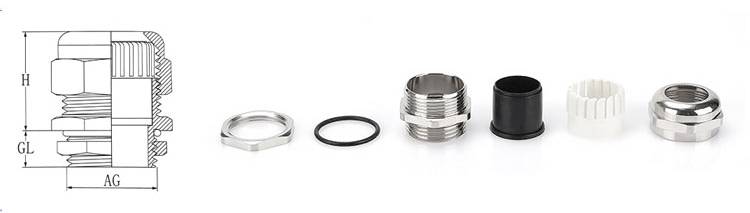

| Code 产品编号 |
Thread 螺牙规格 |
Cable Range (mm) 适用电缆 |
Thread Diameter AG (mm) 螺纹外径 |
Thread Length GL (mm) 螺纹长度 |
Joint Length H (mm) 接合长度 |
Spanner Size (mm) 扳手径 |
|---|---|---|---|---|---|---|
| PG7-MT | PG7 | 3-6.5 | 12.5 | 7 | 18 | 14 |
| PG9-MT | PG9 | 4-8 | 15.2 | 8 | 20 | 18 |
| PG11-MT | PG11 | 5-10 | 18.6 | 8 | 21 | 20/21 |
| PG13.5-MT | PG13.5 | 6-12 | 20.4 | 8 | 22 | 22 |
| PG16-MT | PG16 | 10-14 | 22.5 | 8 | 23 | 24 |
| PG19-MT | PG19 | 12-16 | 24.8 | 9 | 25 | 27 |
| PG21-MT | PG21 | 13-18 | 28.3 | 9 | 27 | 30/32 |
| PG25-MT | PG25 | 17-21 | 32 | 10 | 28 | 35 |
| PG29-MT | PG29 | 18-22 | 37 | 10 | 31 | 40 |
| PG36-MT | PG36 | 25-32 | 47 | 12 | 37 | 50 |
| PG42-MT | PG42 | 32-38 | 54 | 13 | 38 | 57 |
| PG48-MT | PG48 | 37-44 | 59.3 | 14 | 38 | 64 |
| PG63-MT | PG63 | 42-50 | 72 | 15 | 43 | 78 |
